OVERVIEW

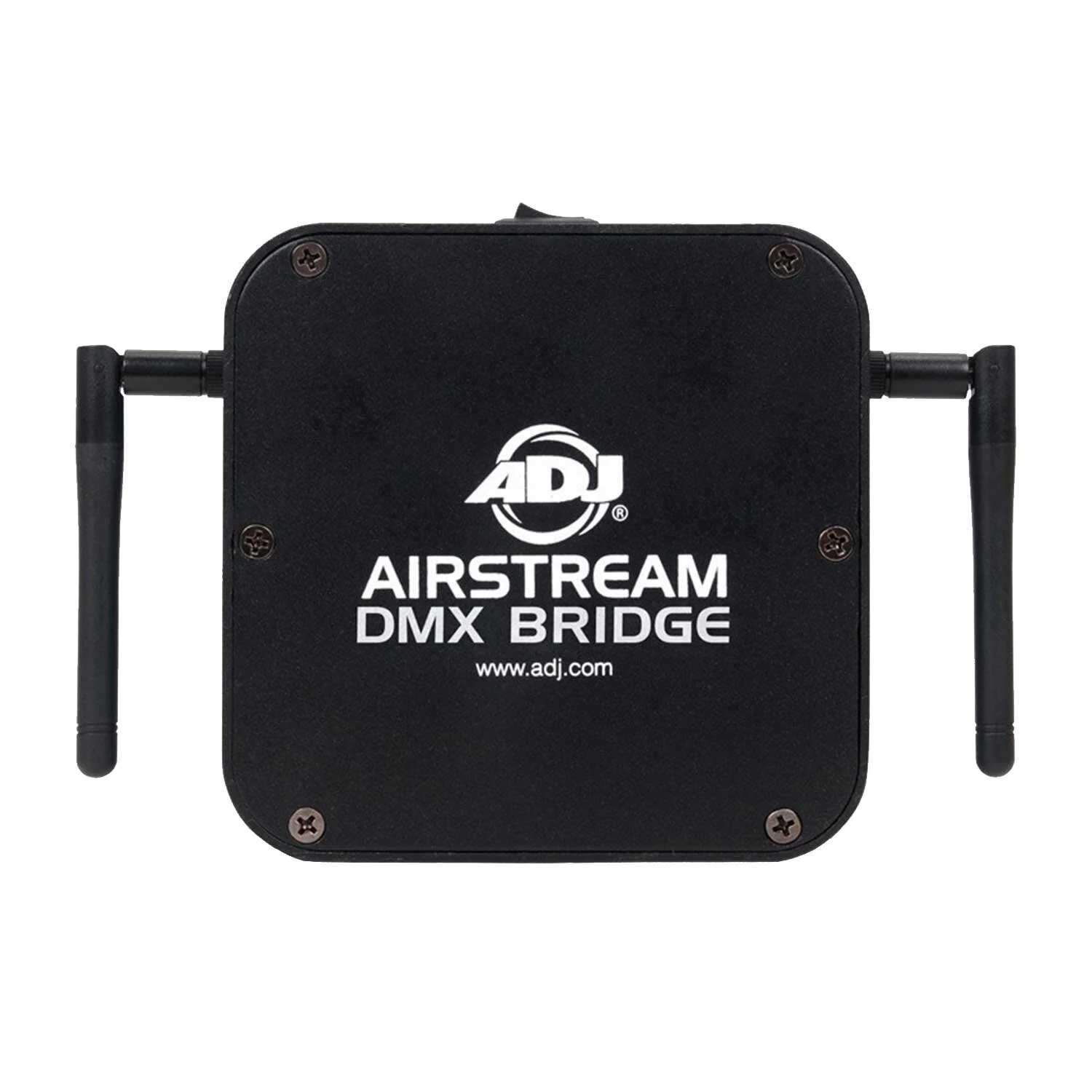

The ADJ Airstream DMX Bridge is a powerful DMX control software for iOS mobile devices (iPad and iPhone) that may be downloaded from the App Store. The hardware creates a wireless WIFI DMX network to control DMX lighting fixtures. It is compatible with ADJ WiFLY and Elation Professional E-FLY products. Users may also control non-WiFLY products from the unit’s 3-pin DMX output. Airstream DMX Bridge features ADJ’s 2,500 foot “EXR” extended range wireless DMX transceiver. Airstream DMX App is compatible with iOS, not Mac OS.

Download the Airstream DMX App for free from the App Store:
https://itunes.apple.com/gd/app/airstream-dmx/id1032178432?mt=8

ADJ Airstream Bridge User Discussion Group:
https://www.facebook.com/groups/airstreamdmx/

ADJ Airstream DMX Bridge Video Tutorials:
https://www.youtube.com/playlist?list=PLxXpR7a9HcIRapJX6Yo2HdnF0CZpkfq9K

The Airstream App manual you can download here:
https://www.dropbox.com/sh/kta1lbloq8hx1e7/AABPOaiz-x5koE4X-OXmHfm0a?dl=0

Compatibility: Requires iOS 8.4 or later. Compatible with iPhone, iPad and iPod Touch.

Specifications:

• Creates a Wireless DMX Network to control using DMX lighting fixtures Airstream DMX App

• Compatible with all ADJ WiFLY and Elation Efly products

• WIFLY wireless signal indicator on side panel

• Magnetic bottom plate for temporary, quick and easy mounting to metal fixtures or objects.   - Quick lock bracket included.

• Up to 2500 wireless feet (open line of sight) when using other “EXR Extended Range” WiFLY products

• One transmitter can send to many receivers using the same radio channel

• Receivers automatically listen for transmitters (no pairing required)

• 14 WiFly Channels

• 3-pin DMX Out

• Wireless Frequency: 2.4 GHz DSSS

• Power Supply: DC 9-12V

• Dimensions (LxWxH):  125 x 175 x 62mm

• Weight:  0.5 kg.
