FULLY-FEATURED COMPACT DIGITAL MIXER

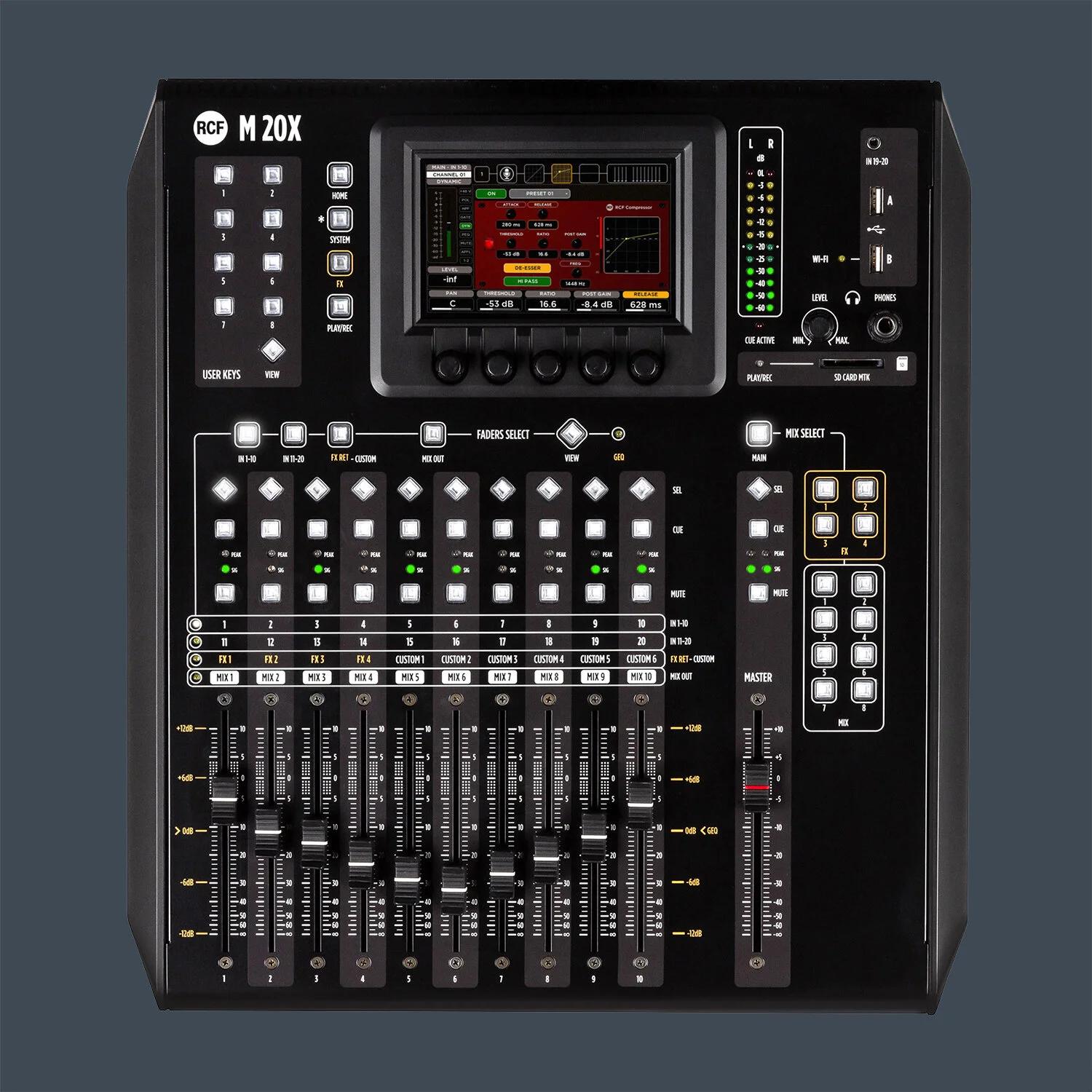

M 20X is a fully recallable mixer, with 16 remote controlled preamps and 11 motorized faders. Despite its dimensions, the M 20X packs a whole suite of capabilities, such as high-profile preamplifiers, top of class DSP with studio-quality processing, WiFi remote control and a comprehensive set of multitrack recording and playback functions. The mixer offers a total of 20 analog inputs and 14 output channels, between the balanced analog outputs and the AES/EBU digital output.

DESIGNED FOR PROFESSIONALS

Touring grade metal construction and reliable electronics, for the best durability over time. High contrast graphics and knobs, premium quality connectors and long-lasting controls increase both functionality and durability over time. The universal voltage power supply makes it perfect for worldwide use, providing the ability to travel safely with your mixer, everywhere.

FEATURES

• 20 analog inputs, 16 mic preamps and 4 line inputs

• 12 balanced outputs + phones

• 20-tracks sd card play/rec

• 24 x 24 CH USB Audio Interface (24-bit/48 kHz)

• 11 motorized Faders

• Smooth User Interface with 5” Touchscreen

• AES Digital Output

• LAN / WiFi Remote Control

ENHANCED FX ENGINES

Four buses are dedicated to internal FX engines, arranged as two high-quality digital-reverbs, a programmable delay and a fourth FX which can be configured as delay or modulation. All FX engines offer multiple algorithms to match the specific needs of a show. It is possible to reserve one reverb for some inputs and use the second reverb as a general-purpose FX for other sources.

EFFECT LIST

REVERB Hall, Plate, Room, Ambience

DELAY Stereo, Modern, Vintage, Dual, Early Reflections

MODULATION Chorus, Flanger, Tremolo
